Why Small-Scale Cooling Is Driving Big Innovation
Across nearly every engineering discipline — from EV battery thermal management to portable medical refrigeration — the demand for high-efficiency, compact, and intelligent cooling is growing at record pace. Traditional compressors and bulky HVAC systems cannot keep up with fast-moving product miniaturization, electrification, and mobility trends.
As a result, miniature compressors and compact cooling systems are emerging as the new standard for OEMs who need powerful, stable, and energy-efficient cooling inside space-constrained applications.
This new generation of thermal systems delivers serious performance in a small footprint. And their impact is reshaping product design across industries like medical diagnostics, defense, aerospace, EV mobility, telecom base stations, and portable cold chain logistics.
This article explores what miniature compressors are, key features, advantages, major applications, design considerations, and a detailed case study to help decision-makers and engineers understand how to deploy them effectively.
1. What Are Miniature Compressors?
A miniature compressor is a small-scale refrigeration compressor — typically DC-powered, brushless, hermetic, and optimized for high power density — used in applications that require precise and continuous cooling but have strict volume, weight, or power constraints.
Key characteristics:
- Compact dimensions (palm-sized in many models)
- BLDC motor drive for high efficiency and long service life
- Low-voltage operation: 12V/24V/48V DC
- High COP (coefficient of performance) even in part-load conditions
- Low noise & low vibration engineering
- Hermetic sealed body for leak-free, maintenance-free operation
- Wide refrigerant compatibility, including low-GWP options
Miniature compressors are typically deployed inside portable, battery-powered, or embedded cooling systems where traditional AC compressors simply cannot fit.

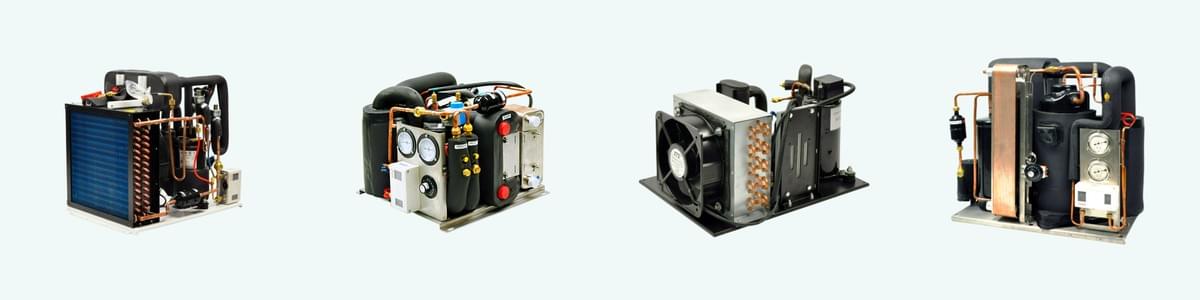

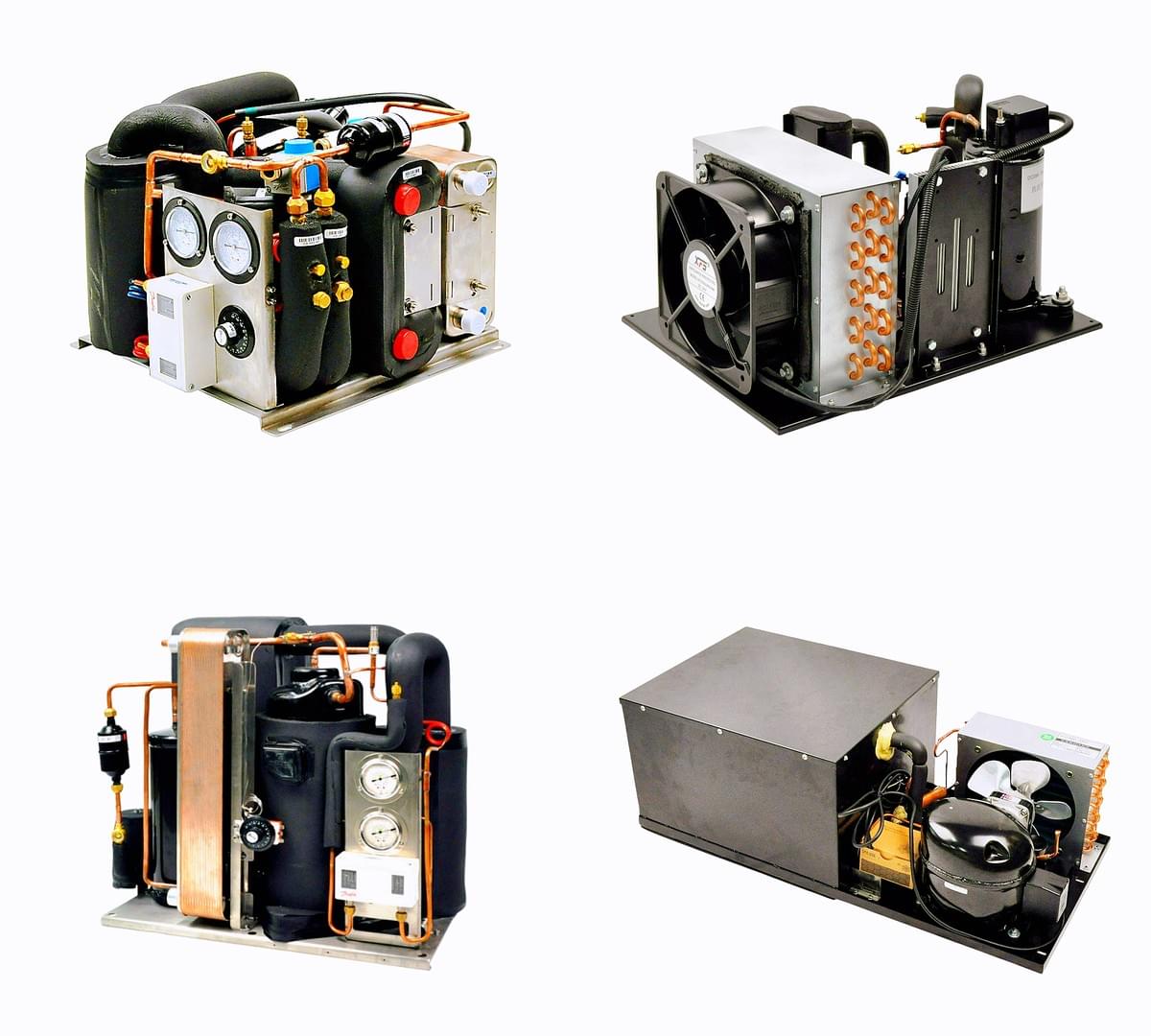

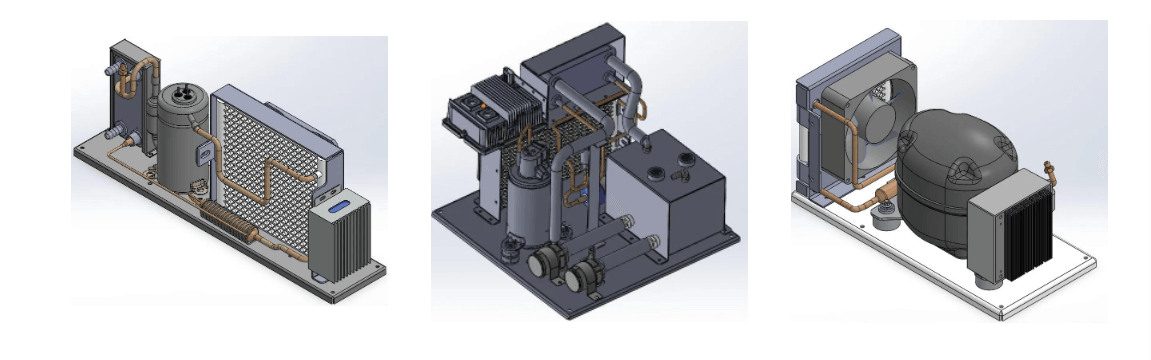

2. What Defines a Compact Cooling System?
A compact cooling system is a complete, integrated thermal management module that includes:
- A miniature DC compressor
- Condenser & evaporator
- Expansion device (capillary, TXV or EEV)
- Fans or blowers
- Sensors & thermal controls
- Wiring harness & vibration isolation
- Optional micro-channel heat exchangers or liquid cooling elements
These modules are often turnkey, enabling OEMs to integrate reliable cooling with minimal engineering time.
Core design features:
- Extremely high power density
- Modularity for OEM customization
- Silent operation for medical and consumer-grade products
- Low energy consumption, ideal for battery operation
- Precise temperature control (±0.1°C possible depending on configuration)
3. Key Features of Modern Miniature Compressors & Cooling Systems
Below are the features valued most by OEMs, integrators, and system designers.
1. BLDC Technology
Brushless DC motors deliver:
- Higher energy efficiency
- Low heat generation
- Reduced noise and vibration
- Longer lifespan
- Smooth variable-speed operation
2. Variable-Speed Control
Compressor speed can be modulated (PWM/CAN) to match cooling demand dynamically, providing:
- Energy savings
- Quiet operation
- No short cycling
- Longer component life
3. Low Voltage, Battery-Friendly Operation
12V, 24V, and 48V options allow integration into:
- Electric vehicles
- Portable devices
- Mobile refrigerators
- Solar-powered systems
4. Hermetic & Leak-Free
- No refrigerant leakage
- Zero maintenance
- High reliability
- Shock/vibration resistance for mobile use
5. Compact & Lightweight
- Smaller enclosures
- Portable cooling devices
- Onboard HVAC for micro-EVs
- Mobile medical coolers
6. Precision Temperature Control
Advanced sensors and electronic valves deliver:
- Very tight temperature regulation
- Faster thermal response
- Stable cooling even in harsh ambient temperatures
7. Low-GWP Refrigerant Compatibility
Manufacturers increasingly support:
- R1234yf
- R290
- R600a
- R513A
- R134a replacements
This ensures compliance with global environmental policies and future-proof engineering.
4. Advantages of Miniature Compressors & Compact Cooling Systems
1 - Smaller Size, Greater Design Freedom
They enable OEMs to:
- Reduce enclosure volume
- Increase internal space for electronics
- Create portable or wearable cooling systems
- Build sleeker, lighter products
2 - High Energy Efficiency
BLDC and variable-speed control cut energy usage by:
- 20–45% compared to old-school AC compressors
- Up to 60% in partial-load operations
This matters especially in battery-dependent systems.
3 - Faster Temperature Pull-Down
Miniature compressors have:
- Lower refrigerant charge
- Smaller thermal masses
- Higher responsiveness
This leads to faster cool-down times and more stable temperature control.
4 - Lower Noise and Vibration
- Patient-care environments
- Consumer appliances
- Medical labs
- Vehicle cabins
- Telecom enclosures
5 - Broad Application Compatibility
One mini compressor platform can be adapted to many industries by adjusting:
- Heat exchangers
- Controls
- Mounting layout
- Refrigerants
- Condensation method (air or liquid)
6 - Lower Total Cost of Ownership
Miniature compressors reduce:
- Maintenance needs
- Energy consumption
- Failure rates
- System complexity
This results in lower TCO over the product lifespan.
5. Applications — Where Miniature Compressors Are Transforming Industry
Miniature compressors enable cooling in places where it was previously impossible or impractical. Below are the top use cases across global B2B markets.
1. Electric Vehicles (EVs) & e-Mobility
Miniature DC compressors are widely used for:

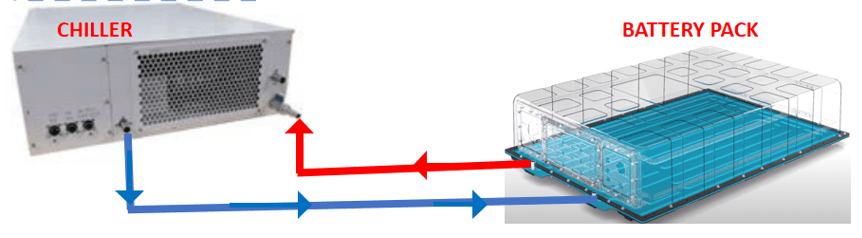

- Battery pack cooling
- Passenger cabin comfort systems for micro-EVs
- Thermal control inside refrigerated e-bike cargo boxes
- Cooling of inverter and motor control units
- Compact HVAC for autonomous delivery robots
The rise of last-mile cold chain delivery is a major growth area.
2. Medical & Life Sciences Equipment
Medical devices require precise temperature regulation. Miniature compressors support:
- Portable vaccine carriers
- Mobile blood storage units
- PCR & diagnostic instruments
- Laboratory freezers
- Medical imaging devices
- Organ transportation coolers
They ensure quiet, reliable, and maintenance-free operation in clinical environments.
3. Portable and Off-Grid Refrigeration
For outdoor, military, or off-grid applications:
- Camping refrigerators
- Solar-powered coolers
- Battery-driven mini freezers
- Marine refrigeration
Miniature compressors’ DC efficiency extends battery life significantly.
4. Telecom & Edge Computing Equipment
Compact cooling stabilizes:
- 5G small cells
- Micro data centers
- Server cabinets
- Remote base stations
Low maintenance and low noise are critical in rooftop and urban environments.
5. Aerospace, UAVs & Defense Applications
Because of strict volume and weight restrictions, miniature cooling solutions are used in:
- Avionics cooling
- High-altitude electronics
- Ruggedized cooling containers
- Soldier-carried systems
Reliability under shock, vibration, and extreme ambient temperatures is essential.
6. Industrial & Semiconductor Cooling
Applications include:
- Laser cooling
- LED modules
- Semiconductor burn-in testing
- Process control equipment
Miniature compressors enable precise temperature stabilization and continuous duty operation.
6. Case Study: How a Medical Device Company Reduced Size & Energy Use by 35%
Client: A global medical device manufacturer developing a new portable PCR diagnostic unit for emergency and rural healthcare.
Problem:
Their existing thermal system was:
- Too large
- Too noisy
- Consumed too much power
- Could not hold a stable 2–8°C under fluctuating ambient conditions
A portable, battery-driven solution was mandatory.
Solution Implemented
The manufacturer replaced their bulky AC compressor with a miniature BLDC 24V DC compressor integrated into a compact cooling system featuring:
- Microchannel condenser
- Capillary expansion
- Vibration-isolated mounting
- Intelligent PID thermal control
- Ultra-low refrigerant charge

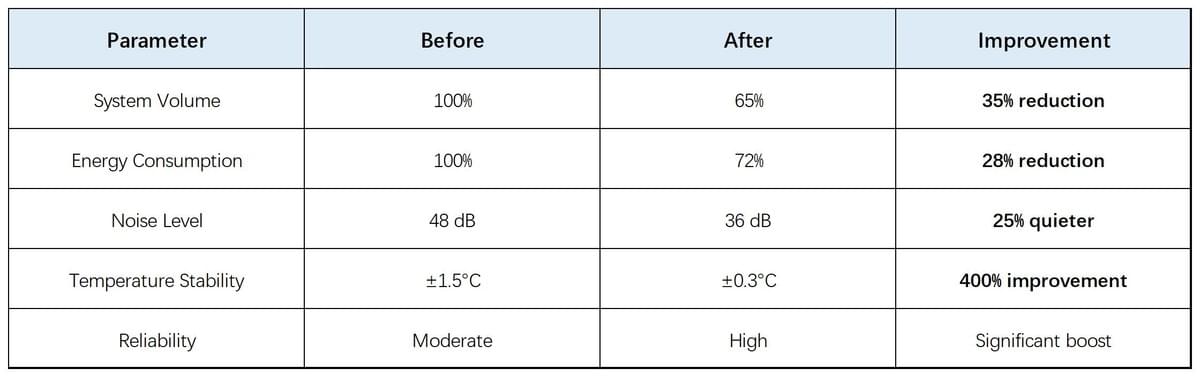

Outcome & Measured Results
The client achieved:
- A fully portable, battery-ready PCR unit
- Faster temperature response
- Better accuracy for reagents
- Lower warranty claims
- A more competitive product in emergency healthcare markets
7. Engineering Considerations for OEM Integration
To ensure optimal performance, OEMs should review these critical factors.
1. Cooling load calculation
- Peak load
- Continuous load
- Transient spikes
- Ambient range
A proper compressor selection depends on accurate thermal modeling.
2. Voltage & power requirements
- 12V/24V/48V DC compatibility
- Startup current
- Continuous current draw
- Battery/solar integration
3. Refrigerant choice
- Global regulations (EU F-gas, EPA SNAP, Japan GWP rules)
- Safety (flammability classification)
- Compressor manufacturer compatibility
4. Heat exchanger sizing
Condenser and evaporator design significantly influence:
- COP
- Cooling capacity
- System stability
5. Vibration isolation
Especially important for:
- Medical
- Automotive
- Aerospace
6. Control strategy
Options include:
- PWM
- CAN bus
- PID thermal loops
Adaptive control improves part-load efficiency and lifespan.
8. Future Trends in Miniature Cooling Technology
The future of miniature cooling is driven by electrification, miniaturization, and sustainability.
1 - Higher Voltage DC Compressors (48V and above)
Supports:
- EV platforms
- Robotics
- Drones
- Industrial automation
2 - AI-Enhanced Thermal Algorithms
Expected benefits:
- Predictive cooling
- Lower energy consumption
- Self-optimizing control loops
3 - Ultra-Low-GWP Refrigerants
New compressors are being designed for:
- R1234yf
- R290
- R600a
- HFO blends
4 - Hybrid Cooling (Active + PCM + Liquid Cooling)
Combining miniature refrigeration with:
- Thermal batteries
- Heat pipes
- Liquid cooling plates
ideal for EV battery packs and high-density electronics.
5 - Additive Manufactured Heat Exchangers
3D-printed microchannel heat exchangers:
- Improve thermal efficiency
- Reduce weight
- Enable custom shapes for OEMs

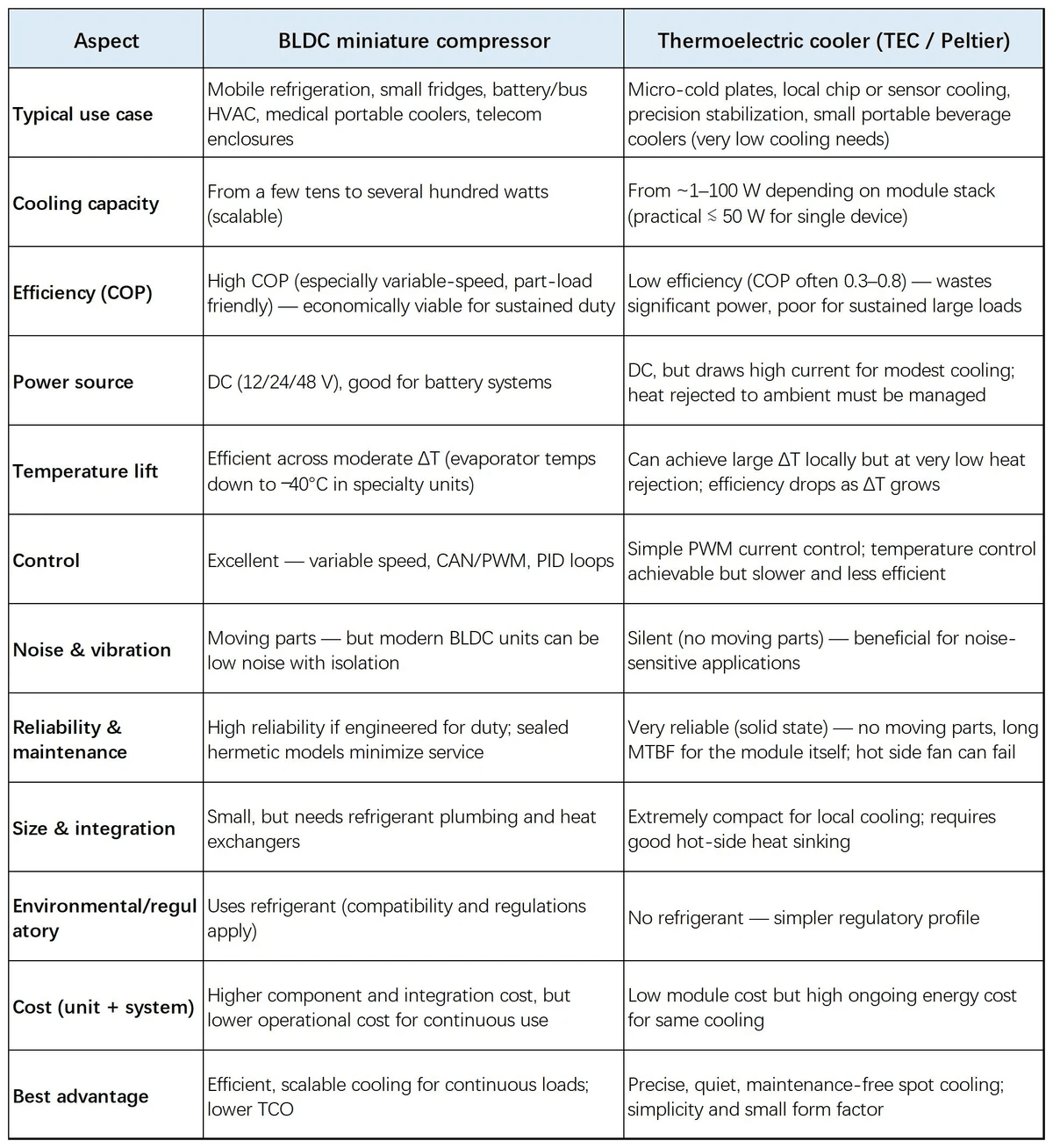

9. BLDC Miniature Compressors vs Thermoelectric Coolers (TECs)
BLDC compressors are far better for medium→high cooling loads, high efficiency, and long-duration duty; TECs shine at small cooling loads, precise spot cooling, and silent, solid-state reliability but are inefficient for larger temperature lifts or continuous heavy cooling.
Pick a BLDC compressor if:
- You need continuous cooling > ~50 W (rule of thumb).
- You need good part-load efficiency and reasonable runtime on batteries.
- You want to cool a closed volume (mini fridge, vaccine carrier, small HVAC).
- You must meet regulatory refrigerant and safety needs but can engineer accordingly.
Pick a TEC if:
- You require a very compact solution for local temperature stabilization (e.g., sensor or laser diode).
- Cooling load is small (< 50 W) and absolute silence or no moving parts matters.
- You need ultra-fast fine temperature control over small thermal masses.
- You want to avoid refrigerants and simplify certification.
Hybrid approach: In some portable or precision systems, use a compressor for bulk cooling and TECs for final fine temperature trimming (e.g., maintain ±0.1°C of a stabilized surface).
Design tradeoffs & numbers to watch
- Crossover point: For continuous duty, sustained cooling > ~40–80 W, compressors usually win on energy consumption and TCO. (Exact point depends on ΔT, ambient, and heat sink quality.)
- COP expectation: Small BLDC compression systems often achieve COP ~2–4 in realistic conditions; TECs commonly have effective COP ≪1 at useful temperature differentials.
- Temperature stability: TECs provide very fine point stability (±0.05–0.1°C) when paired with good PID control and small thermal mass. Compressors with EEV/EEV+sensors can reach ±0.2–0.5°C depending on system.
- Refrigerant charge & safety: Miniature compressors reduce refrigerant mass dramatically compared to full-size systems; still, flammable refrigerants (R290, R600a) require enclosure and safety strategies.
Conclusion: Compact Cooling is the New Industry Standard
Miniature compressors and compact cooling systems are no longer niche technologies — they are now central components in next-generation engineering. From medical devices to EV cold-chain transport, from aerospace electronics to portable laboratory equipment, these compact cooling solutions unlock new product categories through:
- Higher energy efficiency
- Better reliability
- Smaller form factors
- Precise temperature control
- Lower operational cost
OEMs integrating these systems early gain a competitive advantage in product performance, portability, and sustainability.
