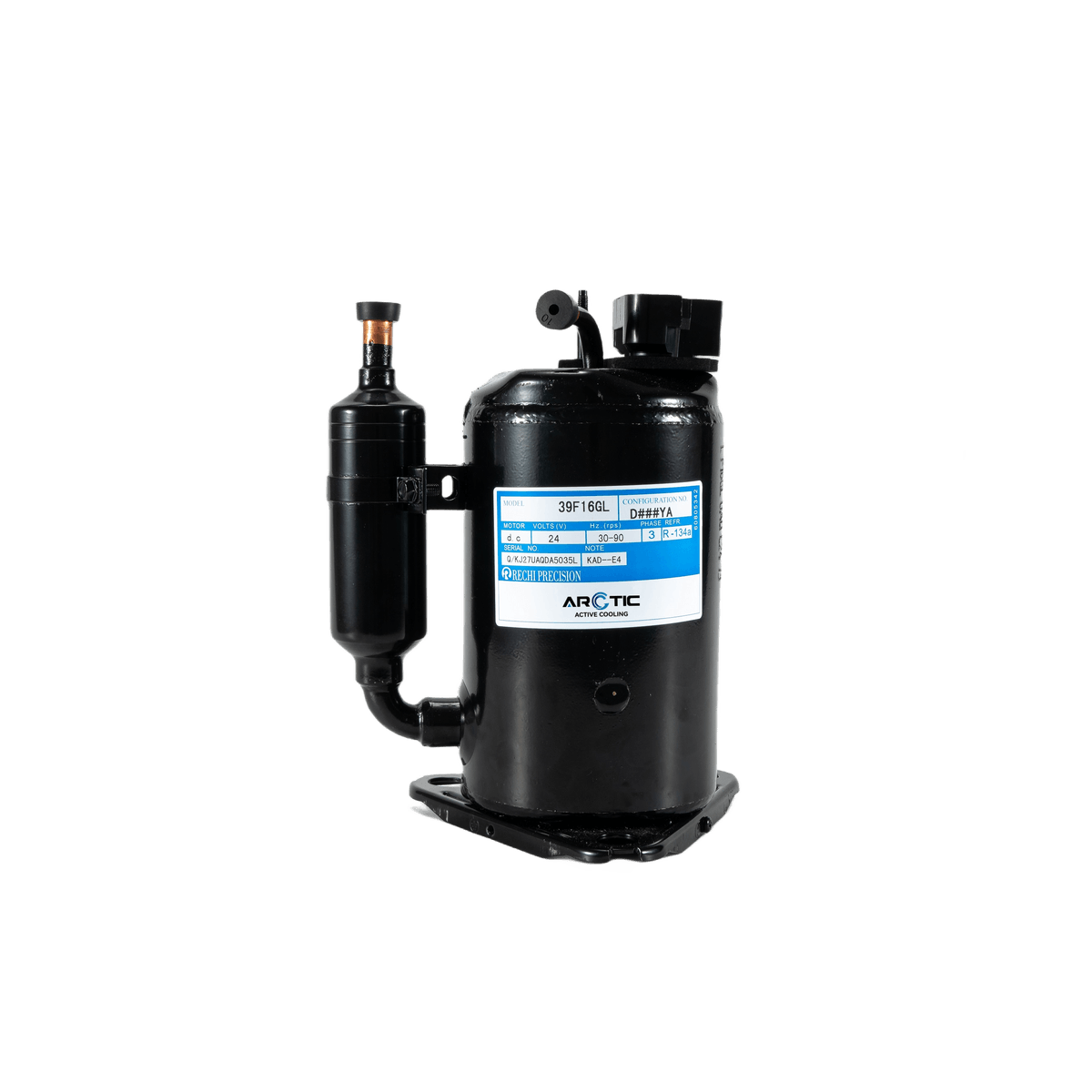

Arctic Active Cooling 48V mini compressor is a key component of refrigeration and air conditioning applications. Compressors are the “heart” of such appliances, comparable to a car engine or even the human heart. A compressor is a mechanical device that increases the pressure of a gas by reducing its volume.

Arctic Active Cooling Technologies presents the lightest, most compact, and more efficient BLDC Inverter Rotary Compressor.

All compressors are miniature BLDC rotary vapor compressors for Air Conditioning and Freezing applications.

• Water Dispenser
• Beverage Cooling
• Portable Air Conditioner
• Portable Cooling Systems
• Mini-Chilled Water Systems
• Telecom Equipment Cooling
• Electronics Cooling Systems
• Medical-Aesthetic Device Cooling
• Miniature Refrigeration/Freezer Systems
• Thermally-Controlled Shipping Containers

The refrigerant begins the cooling process as a vapor under low pressure. The first freezer component it enters is the compressor (usually found in the lower back of the freezer). The compressor squeezes the vapor’s particles, which heats it up and converts it into a high-pressure state.

1. Ultra small dimension.
2. Super lightweight: 720g (1.6lbs).
3. Use a brushless direct current motor.

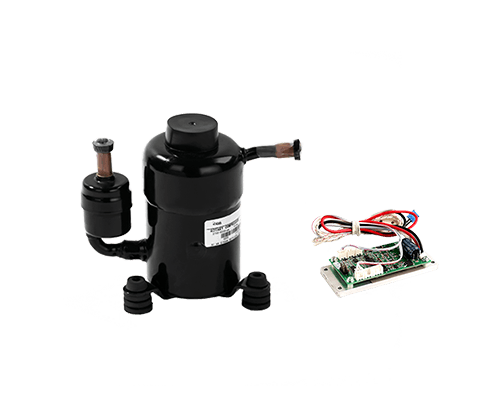

4. Variable speed drive board included.
5. Stand ambient temperature -20℃ ~ 55℃.
