    Roof Mount Monoblock

    Precise temperature and climate control are key when it comes to food storage. Our extensive range of cold room solutions includes innovative monoblock refrigeration units that are ready to use, requiring no additional setup.



    • 220V~240V / 50Hz~60Hz
    • Natural Refrigerant: R290 (included)
    • Utilizes compact horizontal compressor
    • Power Capacity: 5,000~7,500W (up to 25,500Btu)
    • Temperature Range: -18℃ ~ 2℃ (-0.4℉ ~35.6℉)
    • Double defrosting methods: Hot freon gas + electric heating

  • Monoblocks

    wall or ceiling mounted



    Ceiling mounting is ideal for new installations, or through wall mounting is suitable for replacement and refurbishment projects.

    The top-mounted monoblock refrigeration unit is a packaged refrigeration system unit installed on the ceiling of commercial refrigerators, freezers, and compliant cabinets. It is also called plug-in refrigeration unit. The advantages of easy installation, high quality and reliability standards ensure to the customers an innovative, technological product. The top-mounted monoblock refrigeration unit includes the refrigeration compressor, condenser, condenser fan, expansion device, evaporator, evaporator fan, and other refrigeration components.

    • Low sound level＜60dB.
    • Pre-charged with refrigerant.
    • For small to mid-size cold rooms.
    • Fast assembly and ceiling mounting.
    • Excellent space requirement vs. performance ratio.
    • New generation control panel: user-friendly control.
    • Equipped with HP, LP switch, and filter dryer (standard).
    • Cold wind from both sides of the unit, not blowing on people.
    • Using horizontal compressor, the overall height of the unit is lower, saving cold storage space.

  • Monoblock Model

    Arctic Tek specializes in thermal management, providing compact and efficient cooling systems for various industries.

    2HP Monoblock

    MT-D(B)HSR20EL

    • Voltage: 220V~240V
    • Frequency: 30Hz~90Hz
    • Refrigerant: R290 (pre-charged)
    • Cooling Capacity: 5,000W (17,050Btu)
    • Digital controller and temperature display
    • Compressor: Low-profile horizontal compressor
    Arctic Tek specializes in thermal management, providing compact and efficient cooling systems for various industries.

    3HP Monoblock

    MT-D(B)HSR30EL

    • Voltage: 220V ~240V
    • Frequency: 30Hz~90Hz
    • Refrigerant: R290 (pre-charged)
    • Cooling Capacity: 7,500W (25,575Btu)
    • Digital controller and temperature display
    • Compressor: Low-profile horizontal compressor

  • Technical Data

    Roof-mounted Monoblock refrigeration unit / Uniblock cold room refrigeration unit / Ceiling-mounted condensing unit and evaporator in one.



    Monoblock Parameters

    • Condenser: Internal thread copper pipe + aluminum fin.
    • Evaporator: internal thread copper pipe + aluminum fin.
    • Double defrosting methods: Hot freon gas + electric heating.
    • Monoblock dimension: 960× 920× 600mm (LxWxH).
    • Installation size: Length 900 x width 855mm (+5).
    • The upper condenser height of the monoblock: 280mm.
    • The lower evaporator height of the monoblock: 230mm.



    Volume recommendation

    1. MT-D(B)HSR20EL (2HP), refrigerated 2 ~ 8℃ (20 cubic meters), frozen -18℃ (＜ 15 cubic meters).
    2. MT-D(B)HSR30EL (3HP), refrigerated 2 ~ 8℃ (30 cubic meters), frozen -18℃ (＜ 22 cubic meters).

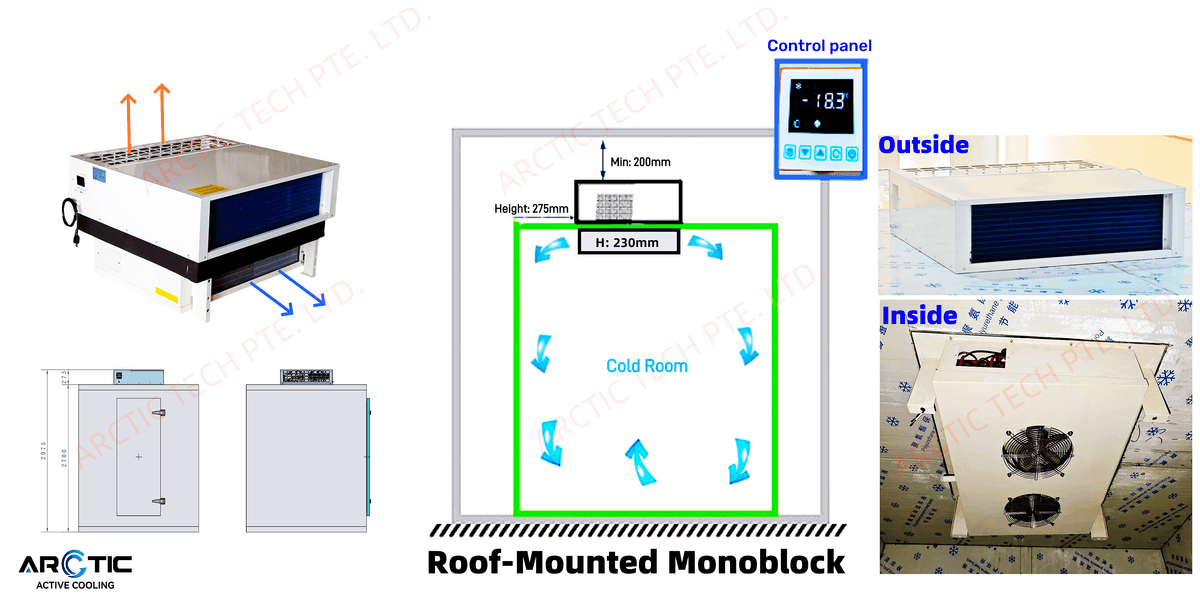

    Roof Mounted Monoblock drawing

  • Features

    Effortless setup

    Completely assembled and pre-charged with refrigerant, effortless installation process. Ensures a quick setup for your convenience.

    Hot gas defrosting

    Our innovative hot gas defrost system employs a reverse cycle, setting it apart from traditional hot gas bypass techniques.

    Refrigeration and Freezing

    The top-mounted monoblock refrigeration unit is designed to operate in both the refrigeration room (0 ~ 8°C) and the freezing room (-18°C).



  • Process

    Arctic Tek specializes in thermal management, providing compact and efficient cooling systems for various industries.

    Induction soldering with helium

    Arctic Tek specializes in thermal management, providing compact and efficient cooling systems for various industries.

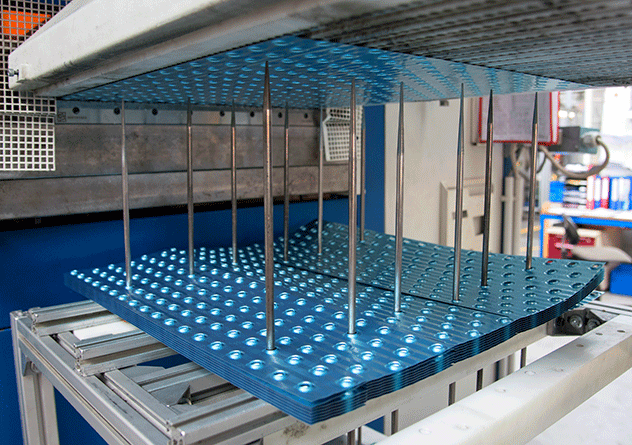

    Smooth and internally ribbed pipework

    Arctic Tek specializes in thermal management, providing compact and efficient cooling systems for various industries.

    Design in tune with ongoing development

  • Cold wind from both sides, not blowing on people.

    -18℃ ~ 2℃ (-0.4℉ ~ 35.6℉)

    Arctic Tek specializes in thermal management, providing compact and efficient cooling systems for various industries.
