Maxx DC Aircon
Best portable and powerful DC air conditioner units that are easy to move and keep confined spaces cool and humidity-free. Battery-driven friendly.
- 24V/48V DC
- R134a/R290 Refrigerant
- Capacity: 650W/2,216Btu
- Brushless Direct Current Motor
- Twin Cylinder pumps with low noise
- 2,000~6,000 rpm variable speeds drive board
Your Premier Micro DC Aircon Supplier
Arctic Active Cooling Micro DC Aircon is a compact solution for small & confined space cooling, such as cabins, cuddy cabins and electric vehicles etc.
The Small DC air conditioner module can run on power DC24V/ 48V, easily connecting to challenging confined spaces and extreme hot ambient! Our portable air conditioner module is a sub-system perfect match for the customer’s slight space cooling powered by battery, grid, car power and solar power.
Similar to the traditional air conditioner, this type of dc air conditioner is available as an outdoor or indoor unit because of its lightest weight and smallest size.
Arctic Active Cooling Micro Refrigeration Cooling System includes a miniature BLDC inverter mini compressor, driver board, condenser, evaporator, capillary, and other refrigeration parts. All these cooling parts are well integrated into one unit. It meets the customer’s specific demands where weight and space are critical.

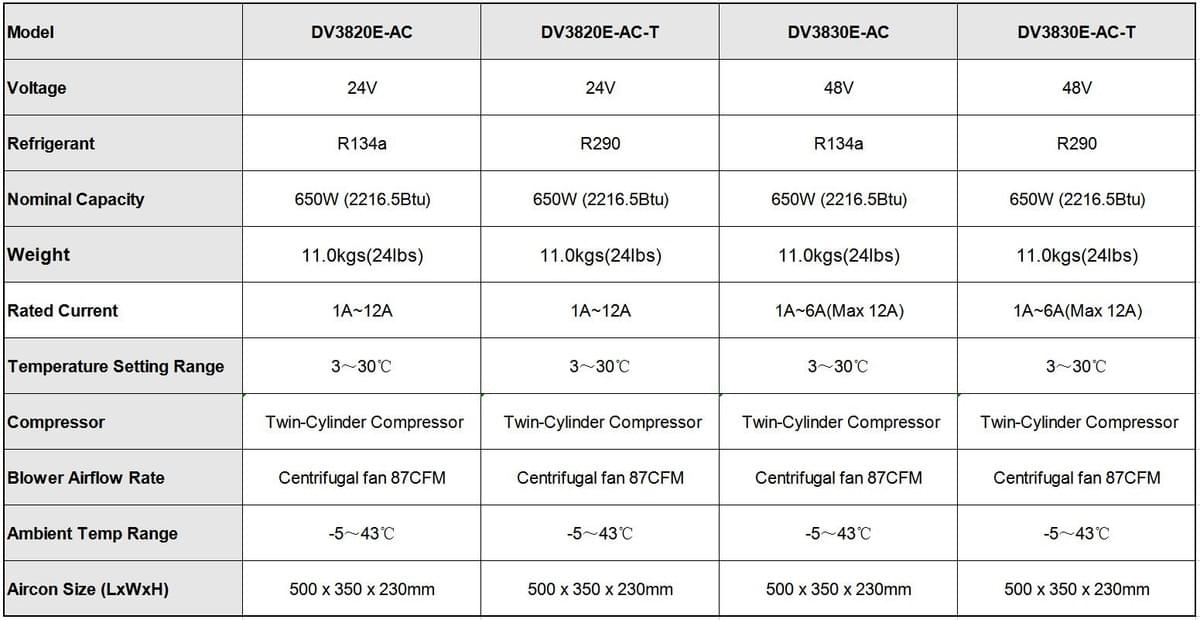

Technical Data
Compressor Model
3.8cc Twin Cylinder Micro DC Aircon
Model: DV3820E-AC
- Voltage: 24V DC
- Refrigerant: R134a
- Working current: 1~12A
- Net Weight: 24 lbs / 11.0kgs
- Cooling Capacity: 650W (2216Btu)
- Size: 350*260*180mm (20*14*9 inch)
3.8cc Twin Cylinder Micro DC Aircon
Model: DV3820E-AC-T
- Voltage: 24V DC
- Refrigerant: R290
- Working current: 1~12A
- Net Weight: 24 lbs / 11.0kgs
- Cooling Capacity: 650W (2216Btu)
- Size: 350*260*180mm (20*14*9 inch)
3.8cc Twin Cylinder Micro DC Aircon
Model: DV3830E-AC
- Voltage: 48V DC
- Refrigerant:R134a
- Net Weight: 24 lbs / 11.0kgs
- Working current: 1~6A, max 12A
- Cooling Capacity: 650W (2216Btu)
- Size: 350*260*180mm (20*14*9 inch)
3.8cc Twin Cylinder Micro DC Aircon
Model: DV3830E-AC-T
- Voltage: 48V DC
- Refrigerant: R290
- Net Weight: 24 lbs / 11.0kgs
- Working current: 1~6A, max 12A
- Cooling Capacity: 650W (2216Btu)
- Size: 350*260*180mm (20*14*9 inch)
Advantage
High Capacity
Miniature Size
High Efficiency
High Reliability
Low Weight
Low noise
Application
Features
High Performance By BLDC Motor
Arctic Active Cooling direct current 12V mini compressor comes with a sine wave variable speed driver board, delivering efficient and reliable performance.
DC Inverter By Arctic Active Cooling Technology
Wide-range inverter compressors satisfy your innovative demands and design. Your product will stand out, your compressor will go unnoticed.
360° Sine Wave Inverter Drive Board
Arctic Active Cooling inverter compressor drive board has features of high reliability and power density.
E-shop
Sample products are available from our online store.
Your order will be proceeded in 24hrs and delivered by DHL/UPS/FedEx.
