850W High Power Liquid Chiller
Precision Chillers That Work Perfectly In Harsh Environments
- 12V DC/ 24V DC
- R134A Refrigerant
- Durable miniature compressor
- Small in size, yet large in power density
- Light weight extremly portable
- It draws less power and rejects less heat
- Temperature stability with high precision/accuracy
Your Premier Small Water Chiller Supplier

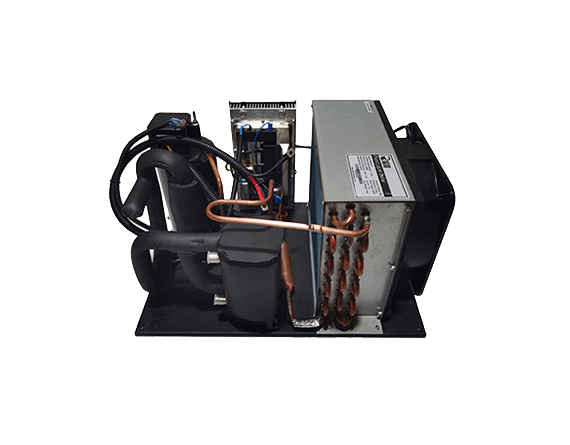

The plate liquid chiller is a compact but powerful chiller, which consists of high power compressor, stainless steel evaporator, condenser, capillary.It is a compact but powerful chiller, which can be used in the field of food, beverage, chemical and other industries. It is light weight and easy to carry. It has a high power compressor that can work continuously for 24 hours.
The High Power Plate Liquid Chillers are a must have for any precision instrument that requires a coolant. It’s a simple, affordable solution to keep instruments or equipments in the optimal operating temperature range. Such as Laser, 3D printers, CNC millers, Lab instruments. The Liquid Chiller is an easy to use, simple, and affordable solution that keeps your instruments in the optimal operating temperature range. The Plate Liquid Chiller is the perfect addition for any precision edge mechanism.
Technical Data
850W Plate Liquid Chiller Model
12V 850W Plate Liuqid Chiller
Model: XB075Z-12
- Voltage: 12V DC
- Refrigerant: R134A
- Net Weight: 28.6lbs / 13kgs
- Motor Type: Variable Speed Motor
- Rated Current: 8.5A(Max 28A)
- Applications: Medical Device, Laser Device, Precise Instrument and Body Cooling
24V
Model: XB075Z-24
- Voltage: 24V DC
- Refrigerant: R134A
- Net Weight: 28.6lbs / 13kgs
- Motor Type: Variable Speed Motor
- Rated Current: 5A(Max 14A)
- Applications: Medical Device, Laser Device, Precise Instrument and Body Cooling
Advantage
High Capacity
Miniature Size
High Efficiency
High Reliability
Low Weight
Low noise
Drawing File
12V Chiller Drawing File-XB075Z12
24V Chiller Drawing File-XB075Z24
Features
High Performance BLDC Small Compressor
Our high power BLDC compressor features a durable, lightweight, compact design and efficient.
Stainless Steel Plate Evaporator
Stainless steels evaporator have excellent resistance to corrosion and to the effects of high-temperature service.
Compact Size and Light Weight
Ultra-Compact Solutions, developed to meet the thermal management systems that have mounting constraints.
E-shop
Sample products are available from our online store.
Your order will be proceeded in 24hrs and delivered by DHL/UPS/FedEx.
